KM 3014 - Gas cooktop


KM 3014
Gas cooktop with 3 burners incl. dual wok for particularly versatile cooking convenience.

Price: $ 3,299.00
KM3014

More product information

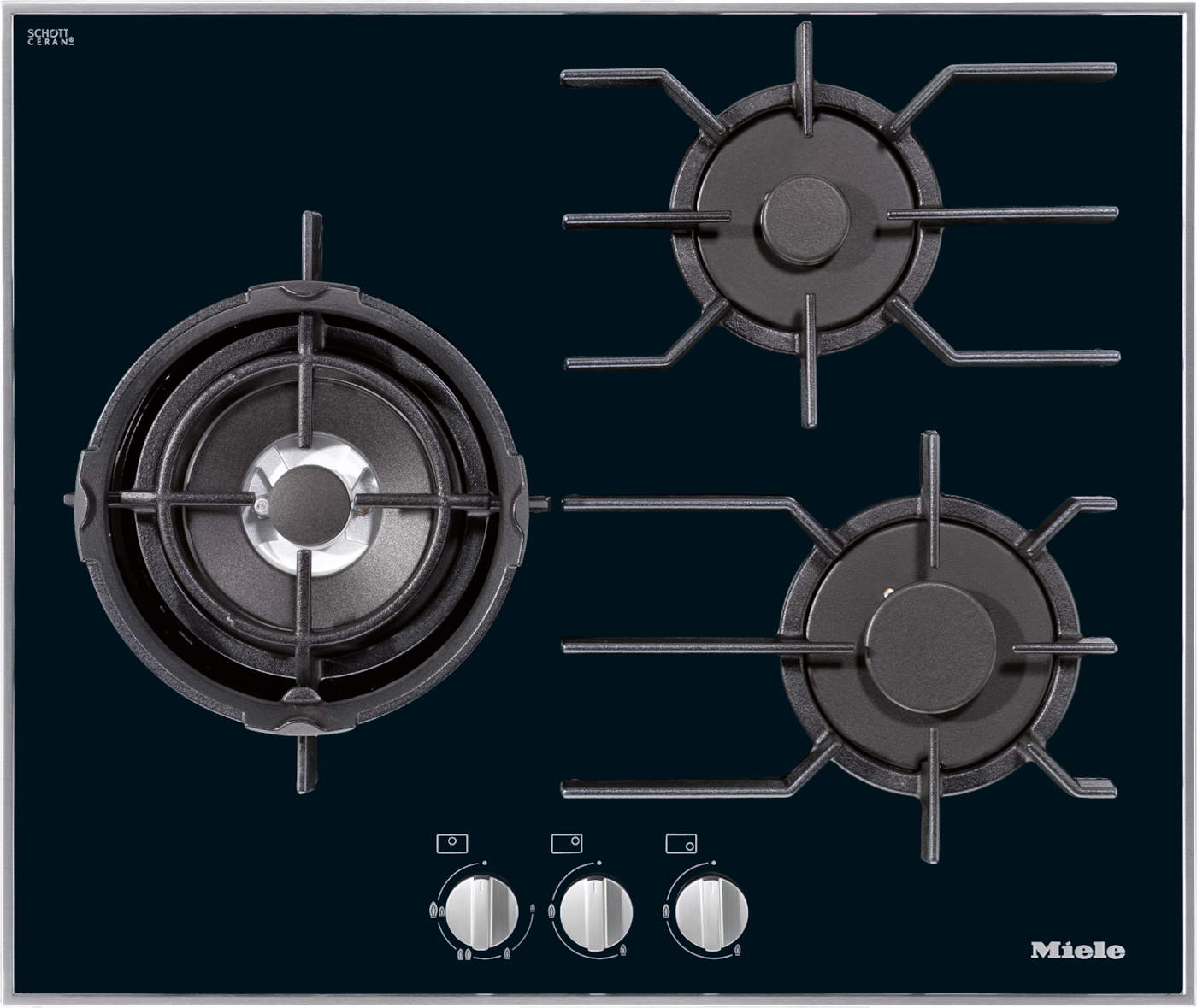

Gas cooktop with 3 burners incl. dual wok for particularly versatile cooking convenience.

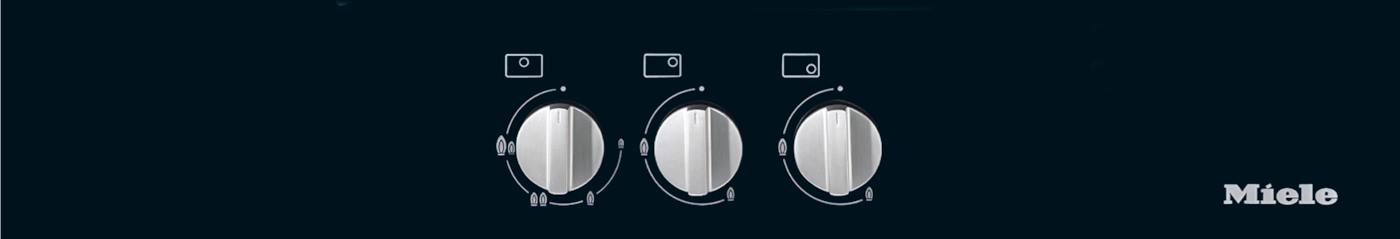

  • Simple controls – single-handed operation via rotary dial control
  • Elegant design – 62.6cm wide gas on glass cooktop
  • Particularly versatile – 3 burners incl. 1 dual wok burner
  • Extremely safe – GasStop function

    GasStop

    Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.
  • Easy cleaning – dishwasher-safe ComfortClean pot rests

Downloads - KM 3014

User manual & Assembly

Description Format Download
Guarantee bookletpdf Download
Operating instructions accessoriespdf Download

CAD data / BIM data

Description Format Download
ZIP archive in 3D format DWGzip Download
ZIP archive in 3D format RVTzip Download
ZIP archive in 3D format RFAzip Download
ZIP archive in 3D format FBXzip Download
ZIP archive in 3D format IFCzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

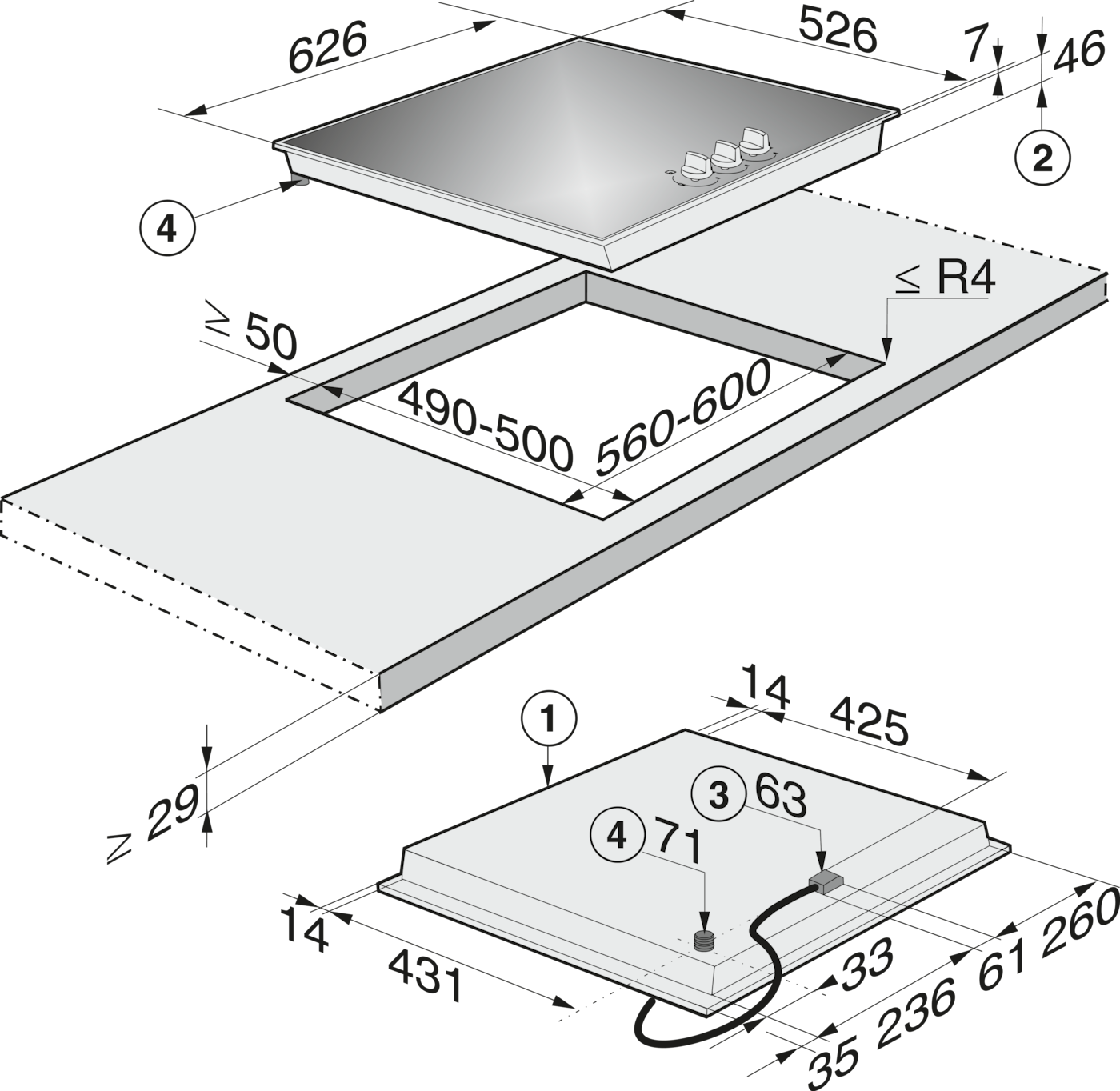

KM 3014 G (installation drawing) VG AUS

1. Front, 2. Building- indepth, 3. Mains connection box with mains connection cable L = 2,000 mmm, 4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226)

Descriptions

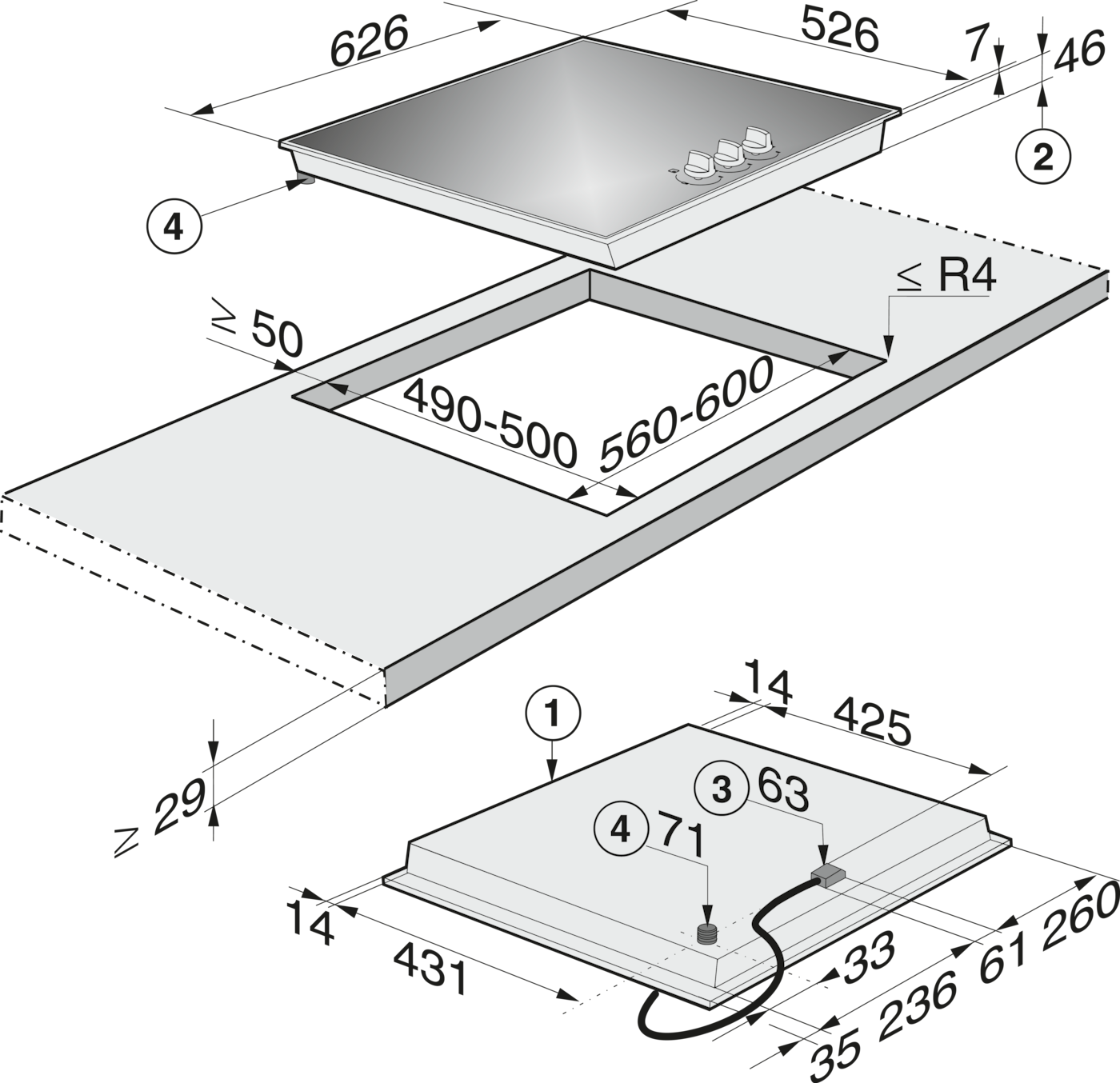

KM 3014 G (installation drawing)

1. Front, 2. Casing depth, 3. Mains connection box with mains connection cable L = 2000 mmm, 4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226)

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
