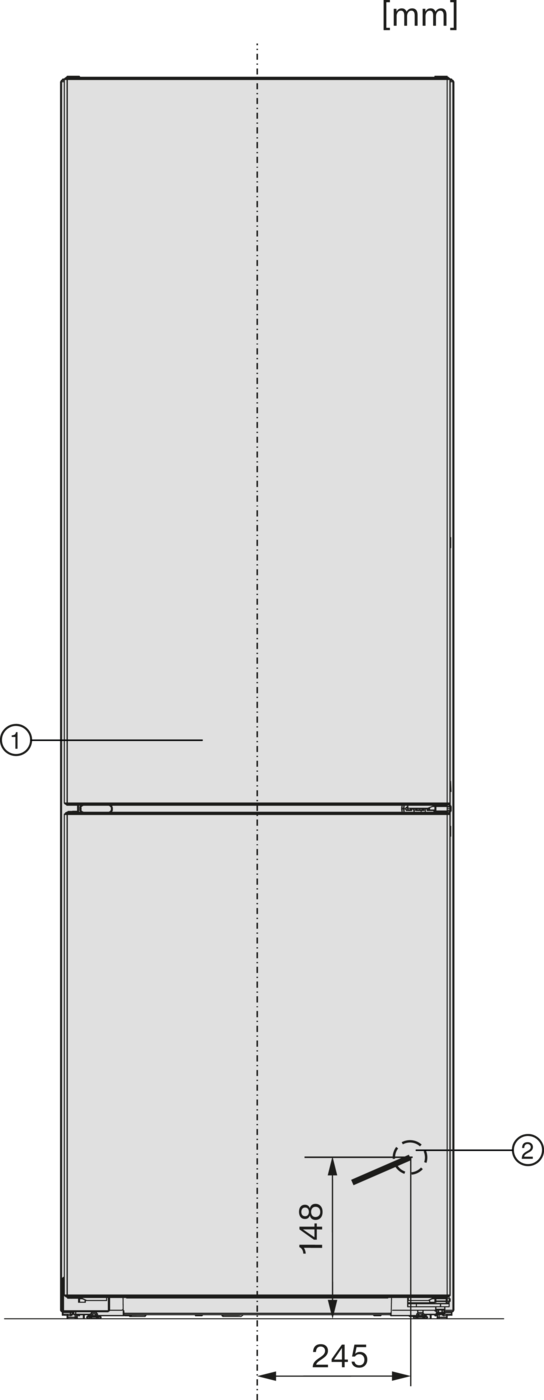

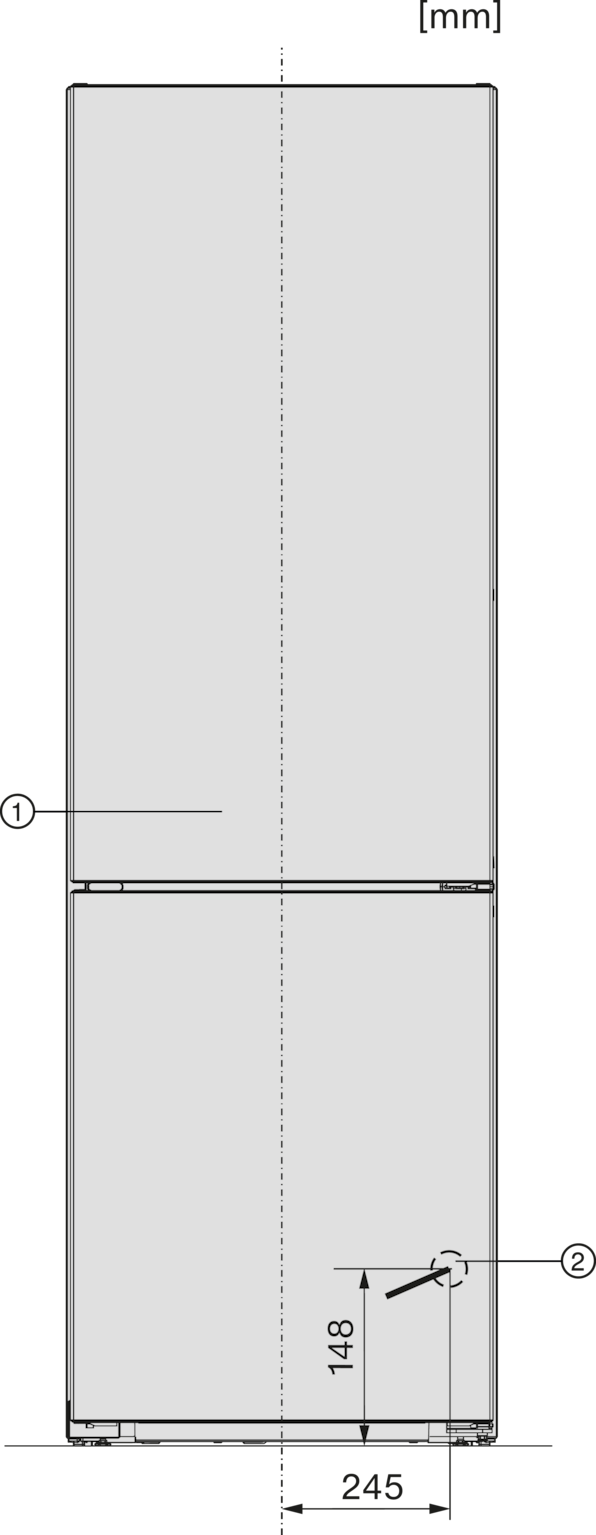

KFN4271CD, KFN4375DD, KFN4375DD C, KFN4375CD, KFN4377DD, KFN4377CD, installation
1. View from the front, 2. Mains connection cable, L = 2200 mm
Freestanding fridge-freezer with DailyFresh, NoFrost and ComfortClean for great convenience.
KFN4271CD, KFN4375DD, KFN4375DD C, KFN4375CD, KFN4377DD, KFN4377CD, installation
1. View from the front, 2. Mains connection cable, L = 2200 mm

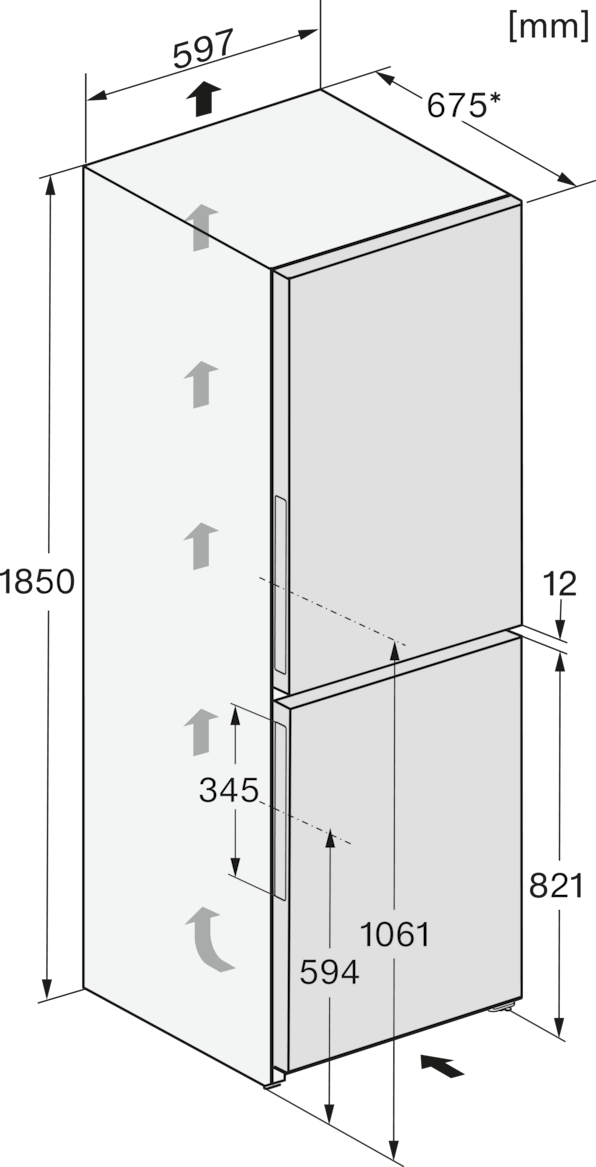

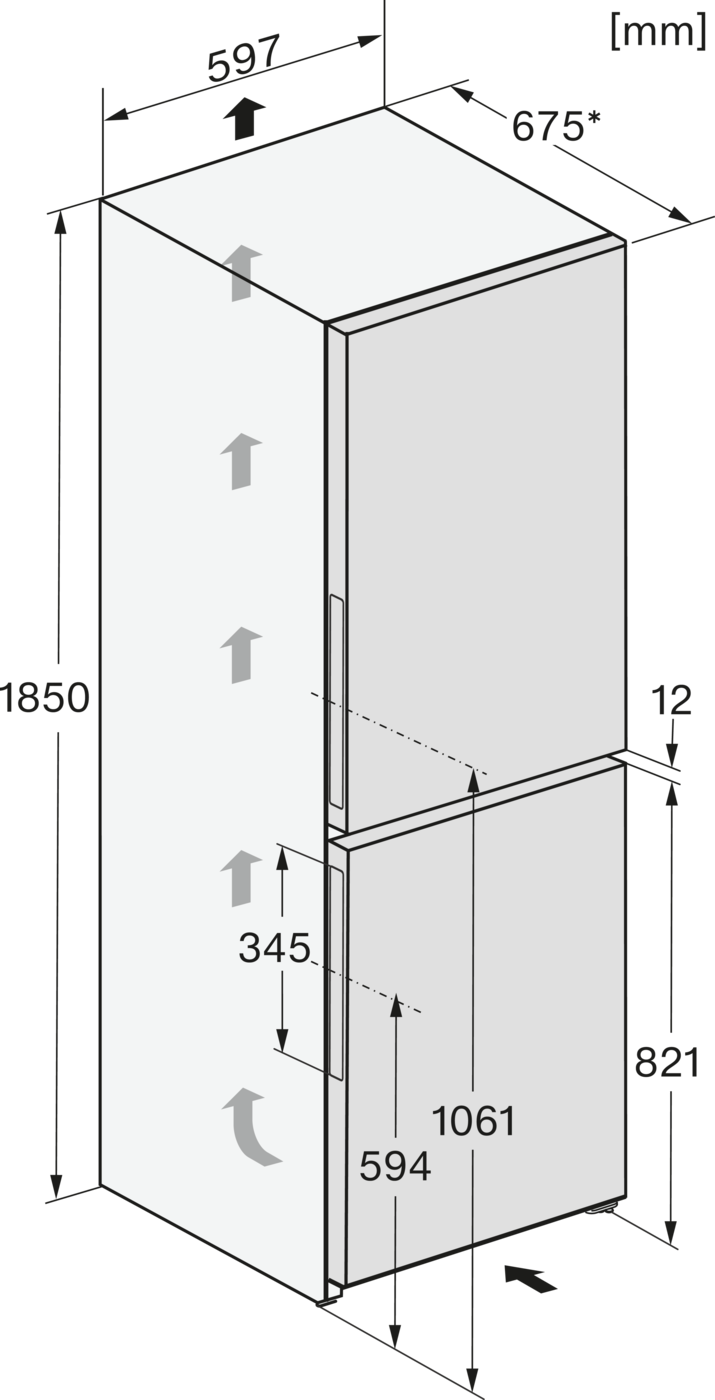

KFN4375DD, KFN4375DD C, KFN4375CD, KFN4377DD, KFN4377CD, installation sketch
*To achieve the declared energy consumption, the spacers supplied with the unit must be used. This increases the depth of the unit by approx. 15 mm. The unit is fully functional without the use of the spacers, but has a slightly higher energy consumption.

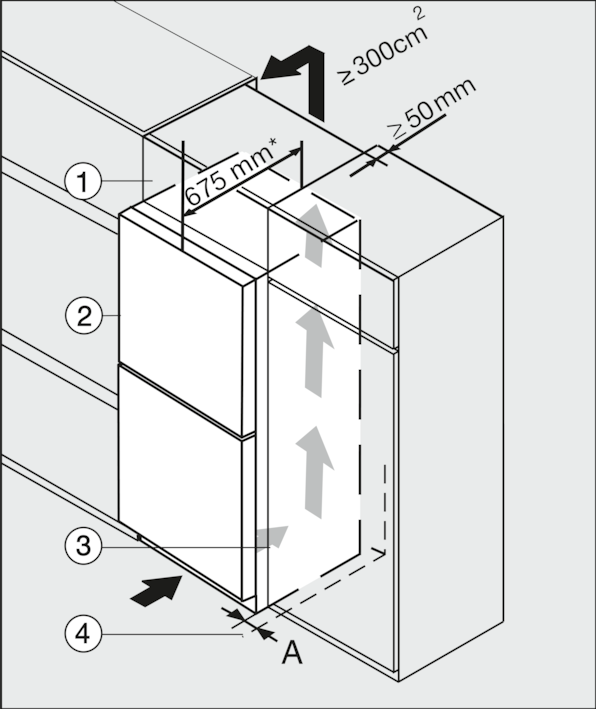

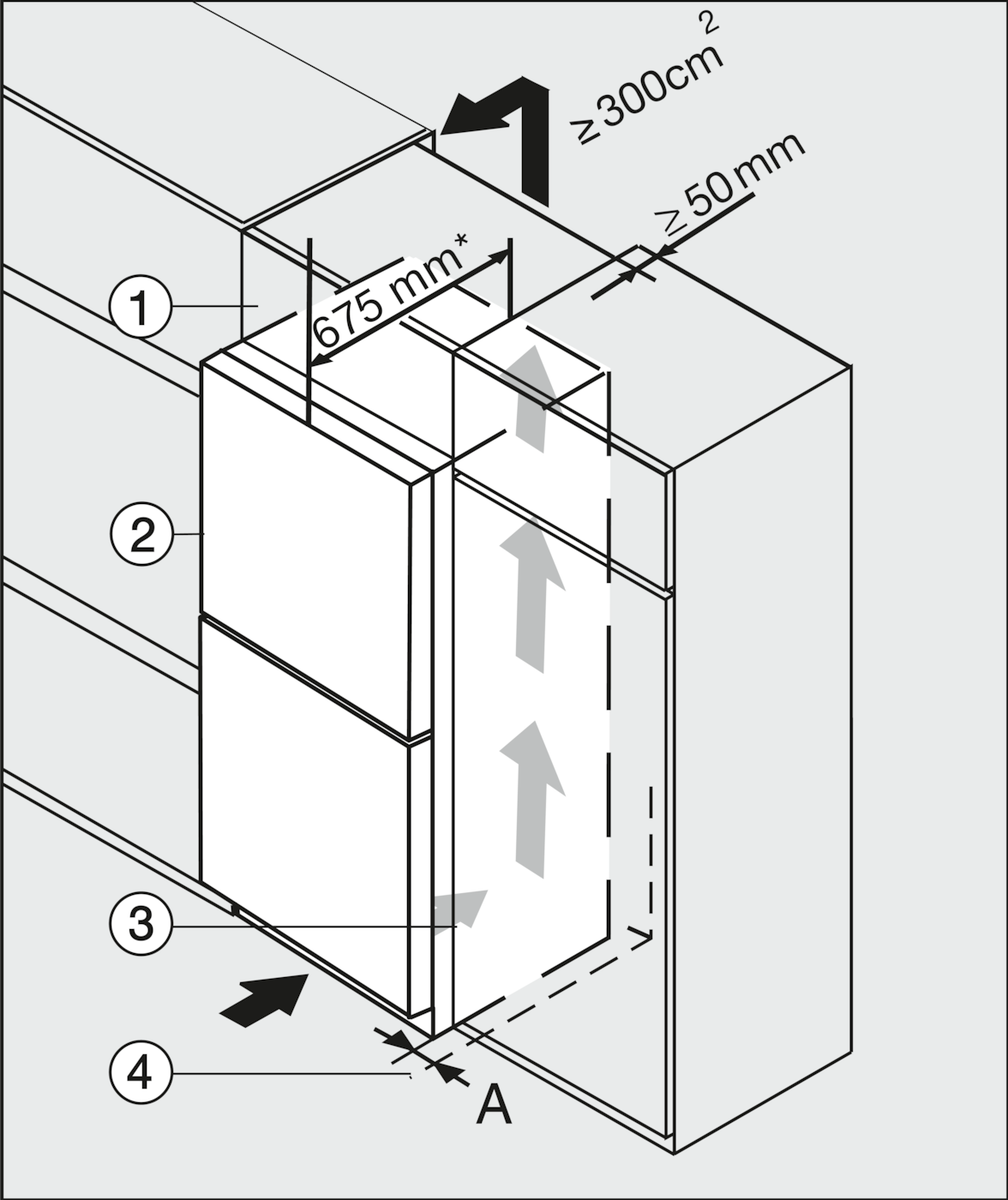

Integrating freestanding refrigeration appliance in a run of kitchen units, edt/cs, ws, bst, el
1. Top box, 2. Refrigeration appliance, door depth = 75 mm , 3. Housing unit, 4. Wall, A = 25 mm (with recessed grip)/60 mm (with handle), The appliance depth is increased by approx. 15 mm for refrigeration appliances with wall spacers fitted.

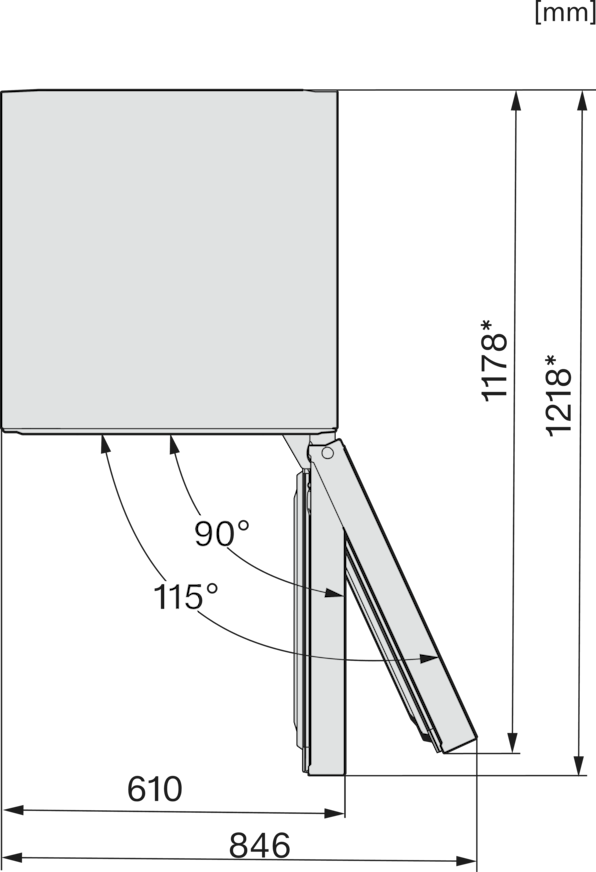

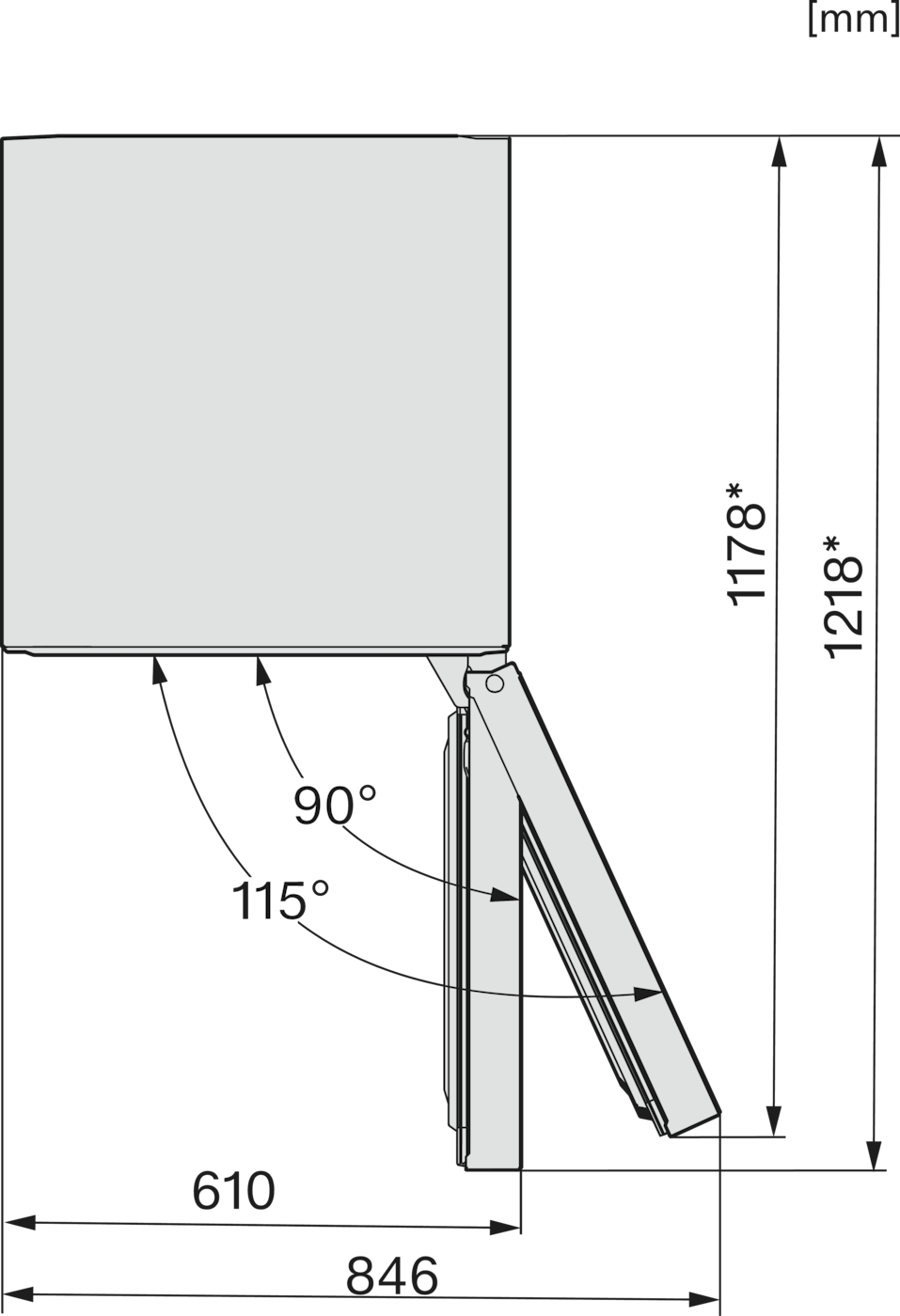

KFN4271CD, KFN4375DD, KFN4395DD, KFN4393FD, KFN4393D, KFN4377DD, KS4383ED, K4373ED, FN4312E, top view
*To achieve the declared energy consumption, the spacers supplied with the unit must be used. This increases the depth of the unit by approx. 15 mm. The unit is fully functional without the use of the spacers, but has a slightly higher energy consumption.
