DGC 7450 - Steam combination oven


DGC 7450
Steam combination oven for steam cooking, baking, roasting with networking, TasteControl, LED lighting.

Price: $ 5,599.00
Article color:
  • Brilliant white
  • Obsidian black
  • Stainless steel/Clean Steel
DGC7450

More product information

Steam combination oven for steam cooking, baking, roasting with networking, TasteControl, LED lighting.


  • Large clear text display with sensor controls – DirectSensor

    DirectSensor

    Direct selection with 4-line clear text display: sensor controls can be used to directly select the desired function. Other options and settings are available via the 4-line clear text display.
  • Excellent results – MonoSteam technology

    MonoSteam

    With the tried-and-tested MonoSteam steam generation method, the steam enters the oven compartment of your Miele appliance via an inlet. It is distributed around the food quickly and evenly and ensures a gentle cooking process for perfect results.
  • Especially light dough and nicely browned crusts – Moisture Plus

    Moisture Plus

    Better roasting and baking results: moisture ensures an incredibly light dough and nicely browned crusts.
  • Ensures your food won’t overcook – TasteControl

    TasteControl

    The automatic rapid cool-down prevents food from continuing to cook and can, if desired, keep the food warm.
  • Easy to clean – PerfectClean finish

    PerfectClean

    Fast cleaning: as no food residue sticks to the surfaces, cleaning is extremely easy.

Downloads - DGC 7450

User manual & Assembly

Description Format Download
Guarantee bookletpdf Download
Operating instructions accessoriespdf Download

CAD data / BIM data

Description Format Download
3D data FBXzip Download
3D data IFCzip Download
3D data RVTzip Download
3D data DWGzip Download
3D data RFAzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

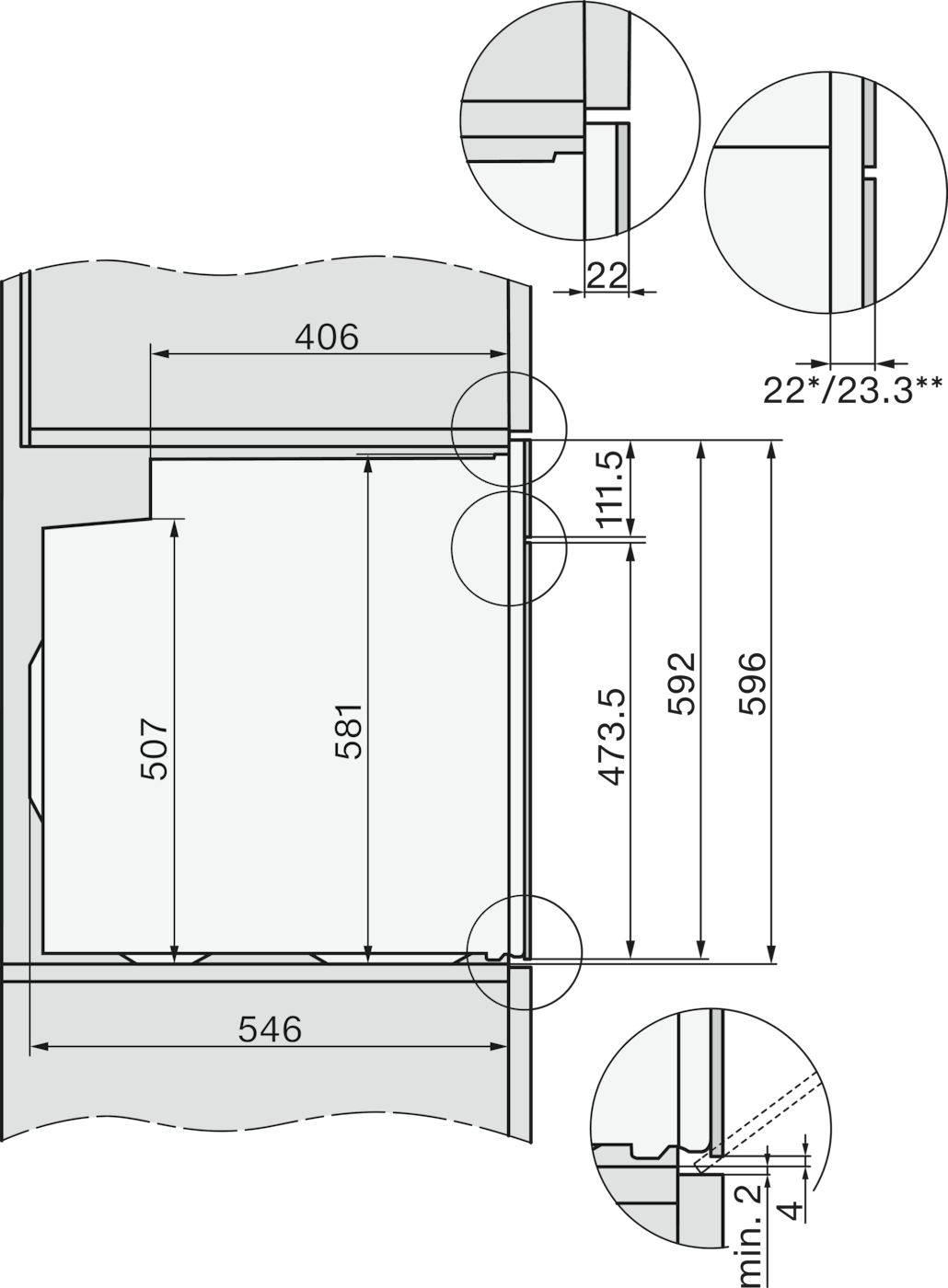

side view H7000 XL build-under, installation drawing, GB, AU

22 mm - glass, 23.3 mm - metal

Descriptions

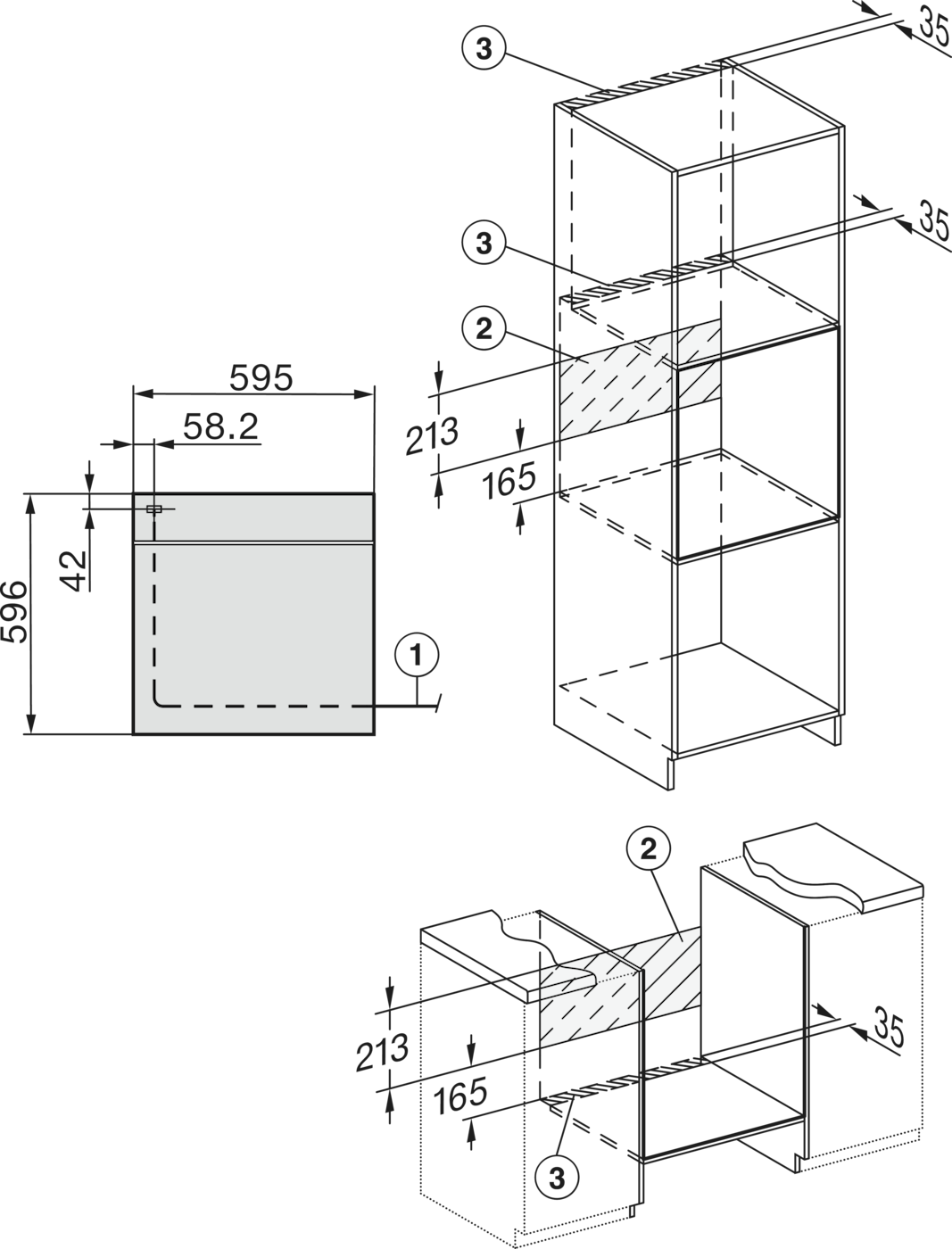

installation H7000 XL, installation drawing, GB, AU

1) Netzanschlussleitung, L=1500 mm, 2) In diesem Bereich kein Anschluss, 3) Lüftungsausschnitt min. 150 cm²

Descriptions

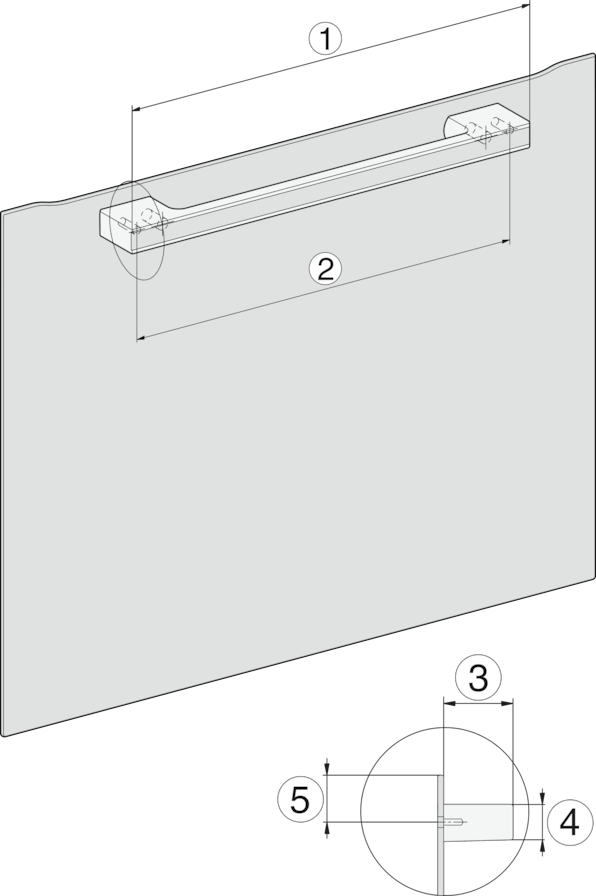

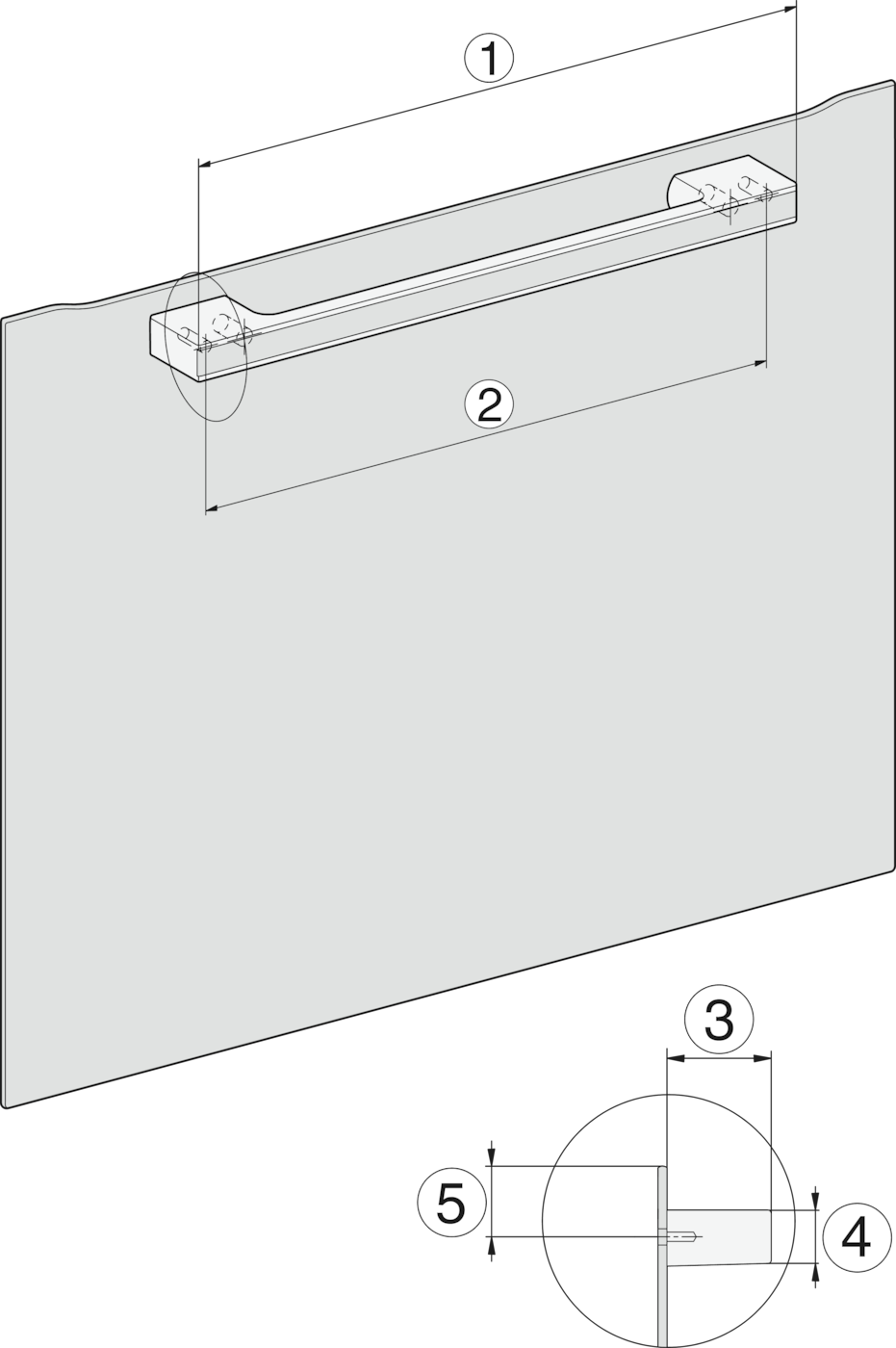

H7000 handle, glass, installation drawings

1) 400 mm, 2) 360 mm, 3) 47 mm, 4) 27 mm, 5) 32.5 mm

Descriptions

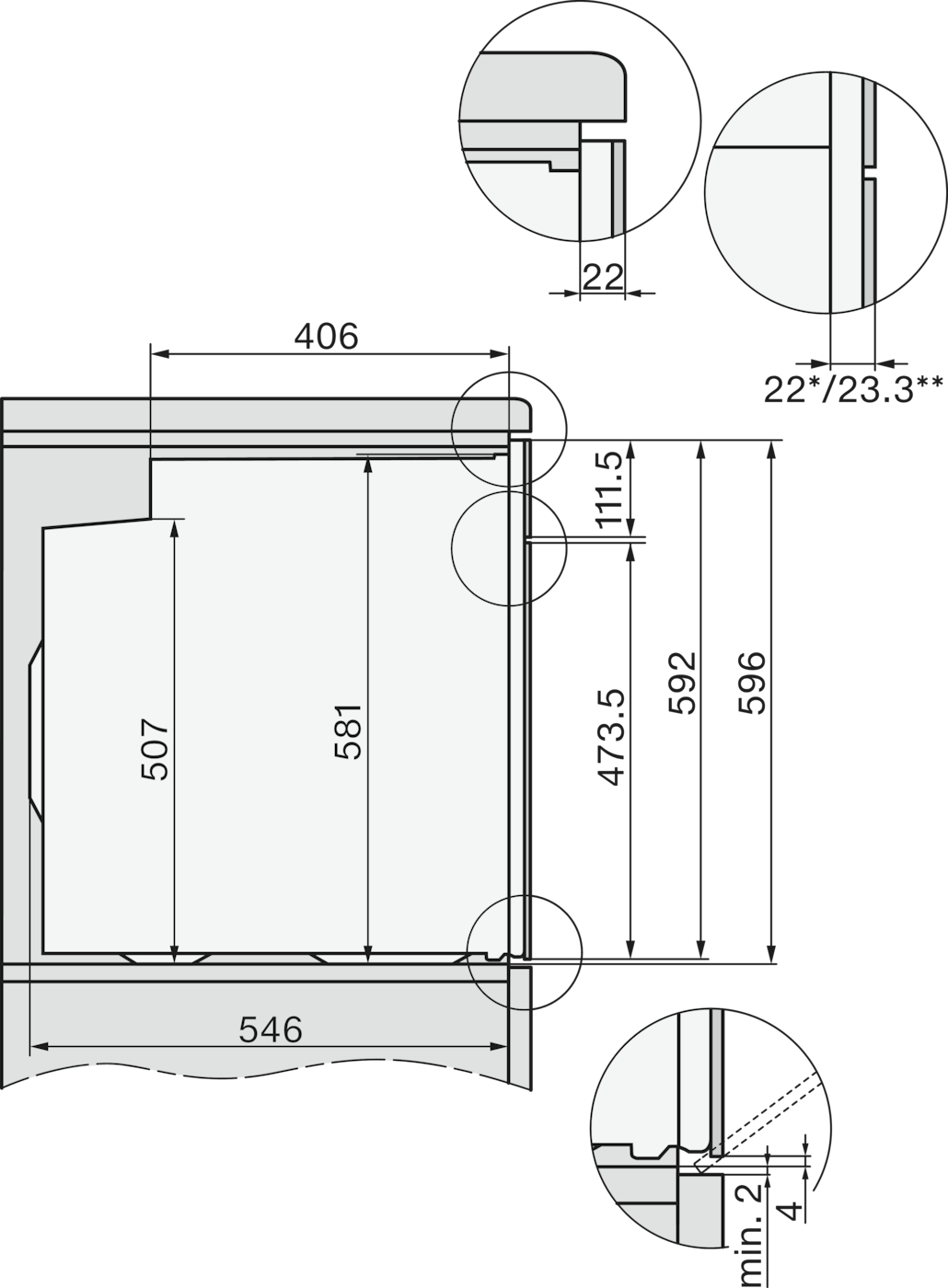

side view H7000 XL, installation drawings, GB, AU

22 mm - glass, 23.3 mm - metal

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
